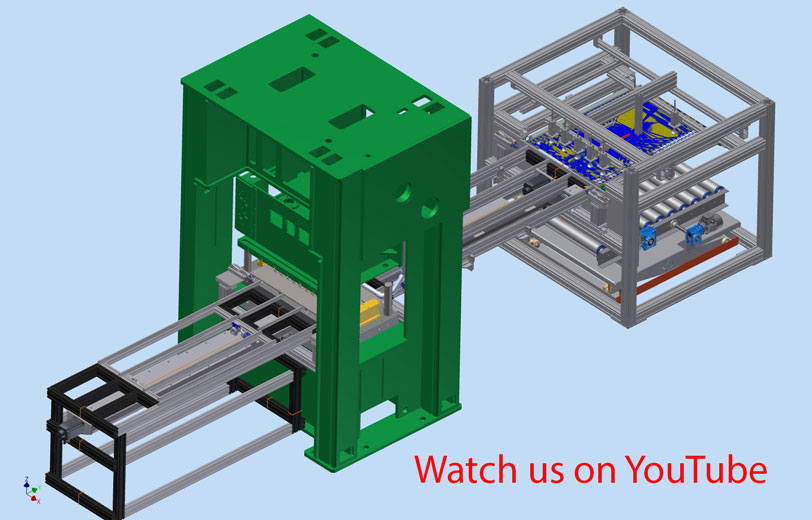

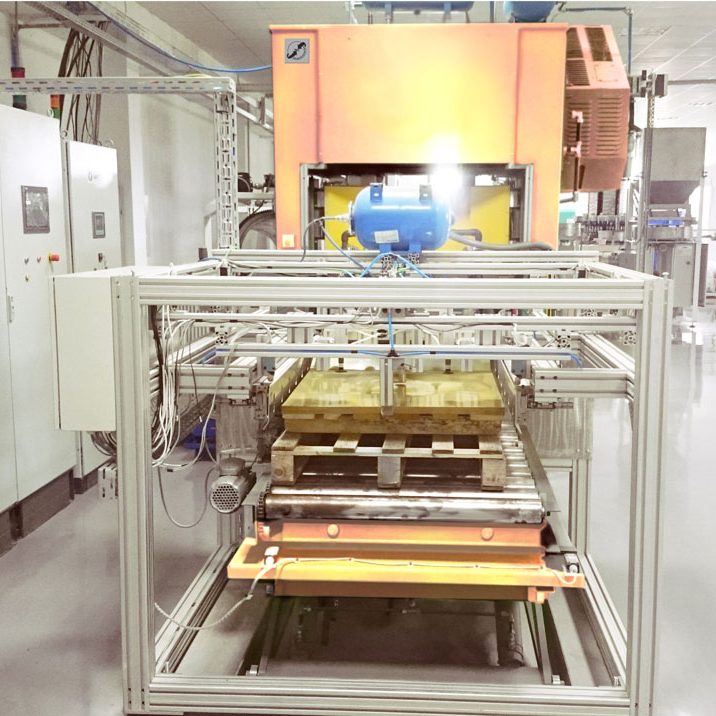

ECCENTRIC PRESS PE-50K
TECHNICAL CHARACTERISTICS:
Rated effort (kN) – 500
The move to the caliper (mm) – 100
Height adjustment (mm) –
Maximum number of moves (min-1) – 80-175
Closed height (mm) – 450
Working height of the patent plate (mm) – 750
Width of frontal lumen (mm) – 1400
Patent plate thickness (mm) – 100
Power of the motor (kW) – 22
Table without tools and accessories (kg) – 10700
Supply voltage / frequency / phases – ~ 400V 50Hz 3f
Pressure in the pneumatic system (bar) – 5.5÷6
Maximum speed of flywheel (min-1) – 943
Maximum number of clutch starts per minute for single stroke (on / min) – 15
Air Consumption of the clutch new / worn (l/min) – max 6.75 / 9,6
Maximum weight of the tool mounted on the caliper (kg) – 2000
