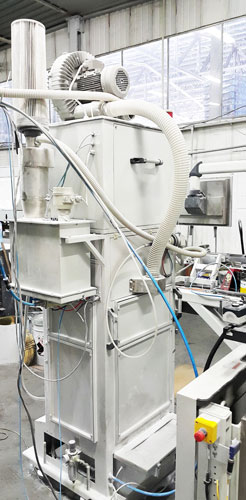

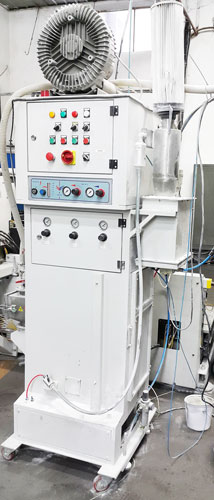

Powder Electrostatic Application Machine
TECHNICAL CHARACTERISTICS:
Power supply voltage – 380V/50Hz
Installed power – 1,8 Kw
Input voltage of the high voltage source – 2 ÷ 12V/17kHz
Output voltage – 10 ÷100кV
Polarity – negative
Operating current – 30 ÷ 100µА
Inlet pressure of the pneumatic system – 6bar
Compressed air consumption – to 15 m3/ h
Vacuum system flow rate – 100÷200 m3/h
Effort – 180÷280mbar
Length – 800mm
Width – 850mm
Height – 2200mm
Orientation table – 220kg
