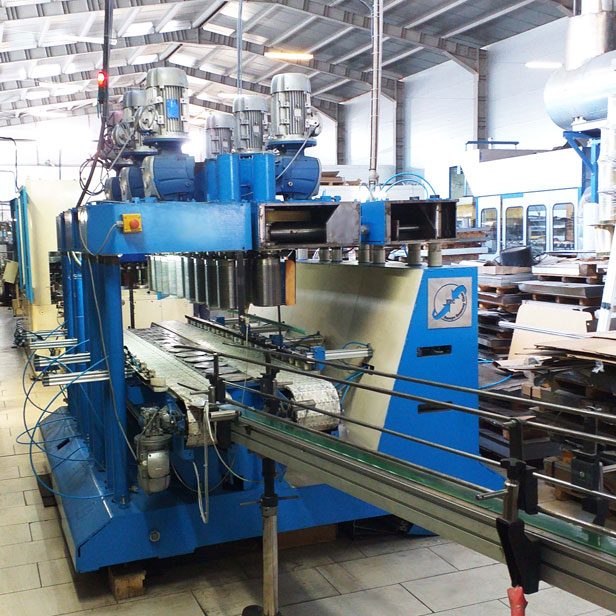

Twin-roll Beading Machine

Dimensions of the machine – 3152 / 2180 / 2155 mm
Machine weight – 6850 kg
Maximum height of boxed boxes – 250 mm
Minimum diameter of boxed boxes – 150 mm
Bending pressure in one pair of heads – 15000– 20000 kN
Boring head revolutions – 626 rpm
Input conveyor speed – 1,45 m/s
Speed of the inlet cylinders / pushers / 0,6 m/s
Speed of lifting cylinders – 0,6 m/s
Speed of motion of the rocking cylinders – 0,4 m/s
Velocity of the drawing cylinders – 0,6 m/s
Output conveyor speed – 1,45 m/s
Boxing / squeezing time – 1 sec
Inlet conveyor brake / clutch – MAYR 3 674.006.0
Boxes per 1min / 12 chapters / – 70 count
